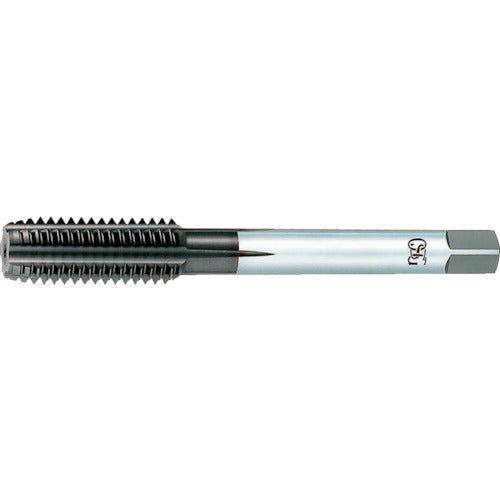

OSG Carbide Tap 8330101 VX-OT-3P-STD-M10X1.0 1 piece

Catalog number: VX-OT-3P-STD-M10X1.0 Features: ●For hardened steel. ●Can be used for both through holes and blind holes. ●Ideal for threading hardened steel (alloy steel, die steel, tool steel, etc.) with a hardness of 50HRC or more. Applications: ●Workpiece: Tempered steel (hardness 50-60HRC). Specifications: ●Tip: 3 teeth ●Accuracy: OH3 ●Accuracy notation: STD ●Nominal size: M10 ●Pitch (mm): 1 ●Thread length (mm): 24 ●Total length (mm): 75 ●Shank diameter (mm): 7 ●Shank square section (mm): 5.5 ●Pilot hole diameter (mm): 9 ●Machined thread: Metric thread ●Surface treatment: V coating (composite multi-layer coating) ●Tap grade: OH grade Material/Finish: ●Carbide
