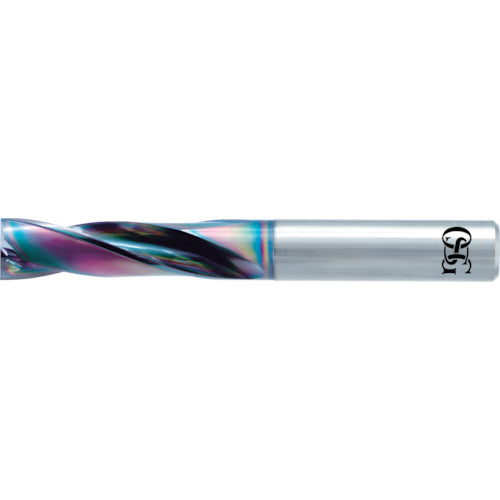

OSG Carbide Flat Drill ADF-2D 3331010 ADF-2D-10.1 1 piece

Catalog number: ADF-2D-10.1 Features: ● EgiAs coating is used to improve wear resistance and dust resistance. ● One tool can be used for a variety of applications, such as countersinking on inclined and curved surfaces. Applications: ● Workpiece: low, medium and high carbon steel, alloy steel, steel for plastic molds, special steel, tempered steel, pre-hardened steel, cast iron, ductile cast iron, aluminum drawn material, aluminum alloy castings. Specifications: ● Blade diameter (mm): 10.1 ● Groove length (mm): 46 ● Total length (mm): 90 ● Shank diameter (mm): 10 ● Effective machining depth: 2D (blade diameter x 2) ● Surface treatment: EgiAs coating ● Surface treatment: EgiAs coating Material/Finish: ● Carbide
