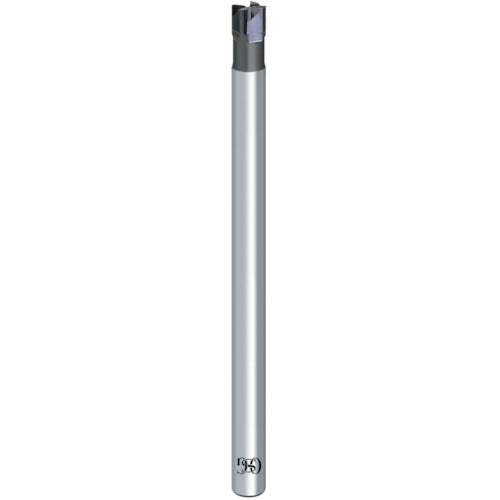

OSG Carbide Radius End Mill FX Coated Cermet Bottom Finishing 4 Blades Corner Radius 0.4mm Blade Diameter 16mm 8524916 FX-MCF-16XR0.4 1 Piece

Catalog number: FX-MCF-16XR0.4 Features: ● An end mill exclusively for bottom finishing that uses a cermet base material + FX coating. ● Achieves amazingly high speed and mirror finish processing. ● Not only chamfering but also centering allows for high speed and long life. Applications: ● Workpiece materials: carbon steel, alloy steel, tool steel, pre-hardened steel (up to 40HRC), stainless steel (up to 35HRC). ● For low, medium and high carbon steel, alloy steel, tempered steel (up to 45HRC), hardened steel (45-70HRC), tool steel, cast iron, ductile steel, copper alloy, aluminum alloy casting, titanium alloy, and Inconel. Specifications: ● Blade diameter (mm): 16 ● Corner radius (mm): 0.4 ● Blade length (mm): 2.5 ● Total length (mm): 140 ● Shank diameter (mm): 16 ● Surface treatment: FX coating ● Neck diameter: 15 ● Outside diameter (Dc): 16 ● Twist angle 12° Material/Finish: ● Carbide
