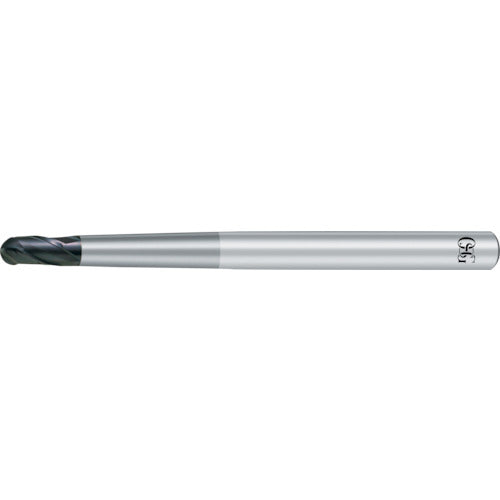

OSG Carbide Radius End Mill WXS Coated High Efficiency 3-Blade Ball Radius 3mm Neck Length 46.7mm 8511635 FXS-PC-EBT-R3X130X46.7 1 Piece

Catalog number: FXS-PC-EBT-R3X130X46.7 Features: ●A three-blade ball end mill that achieves high-efficiency machining through deep drilling. Applications: ●Cutting materials: carbon steel, alloy steel, tool steel (up to 40HRC), pre-hardened steel, hardened steel (up to 55HRC). Specifications: ●Ball radius (mm): 3 ●Neck length (mm): 46.7 ●Blade length (mm): 6 ●Total length (mm): 110 ●Shank diameter (mm): 8 ●Number of blades (pieces): 3 ●Surface treatment: WXS coating ●Number of blades: 3 ●Shank diameter: 8 ●Neck taper radius: 1°30' ●Twist angle (°): 30 ●WXS coating ●Twist angle 30° Material/Finish: ●Carbide
