オーエスジー（株）

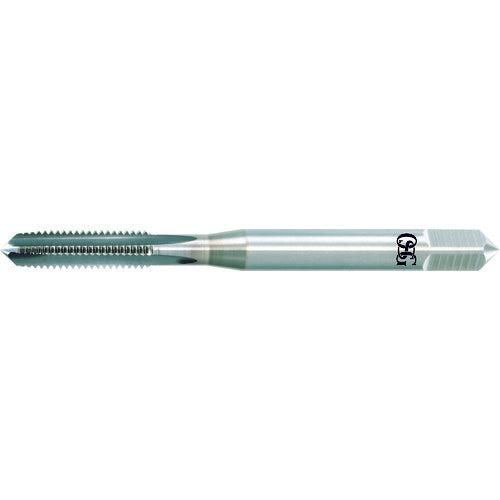

OSG Hand Tap for Ultra-Hard Steel 3901010 WH55-OT-5P-STD-M3 x 0.5 1 Piece
OSG Hand Tap for Ultra-Hard Steel 3901010 WH55-OT-5P-STD-M3 x 0.5 1 Piece
Regular price
¥11,920
Regular price
Sale price
¥11,920
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: WH55-OT-5P-STD-M3 x 0.5 Features: ●Ideal for threading hardened steel up to 55HRC. Applications: ●Workpiece: Tempered steel (40-55HRC). Specifications: ●Tip: Medium ●Accuracy: OH3 ●Accuracy notation: STD ●Nominal size: M3 ●Pitch (mm): 0.5 ●Thread length (mm): 11 ●Total length (mm): 46 ●Shank diameter (mm): 4 ●Shank square section (mm): 3.2 ●Pilot hole diameter (mm): 2.5 ●Machined thread: Metric thread ●Surface treatment: V coating Material/Finish: ●Carbide
