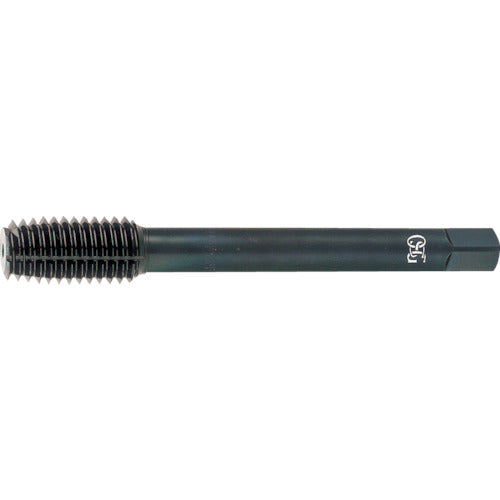

OSG Rolling Tap for Steel M5X0.8 RH6 P 12444 NRT-STD-P-M5X0.8 1 piece

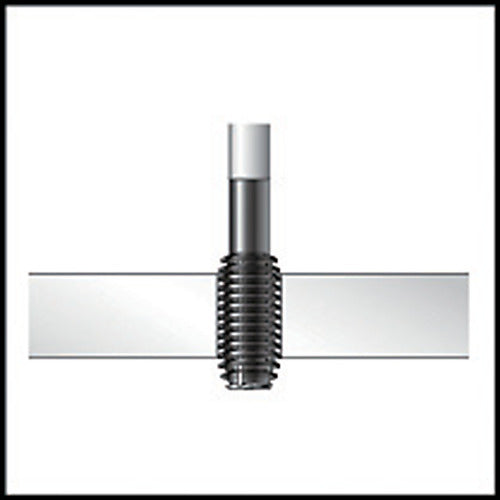

Catalog number: NRT-STD-P-M5X0.8 Features: ●Because the thread is formed by plastic deformation, it is suitable for low carbon steel and stainless steel, which have a large elongation. ●It is a rolling tap for steel. Applications: ●For through hole processing. ●Work material: low and medium carbon steel, stainless steel, copper. Specifications: ●Accuracy: RH6 ●Accuracy notation: STD ●Nominal size: M5 ●Pitch (mm): 0.8 ●Thread length (mm): 11 ●Total length (mm): 60 ●Shank diameter (mm): 5.5 ●Shank square section (mm): 4.5 ●Number of teeth: 4 teeth ●Machining thread: Metric thread ●Surface treatment: Homo treatment ●Tap grade: RH grade Material/Finish: ●High speed steel (HSS) Caution: ●Pre-drilling the pilot hole has a large effect on the accuracy of the thread. ●Please be careful when drilling the pilot hole.
