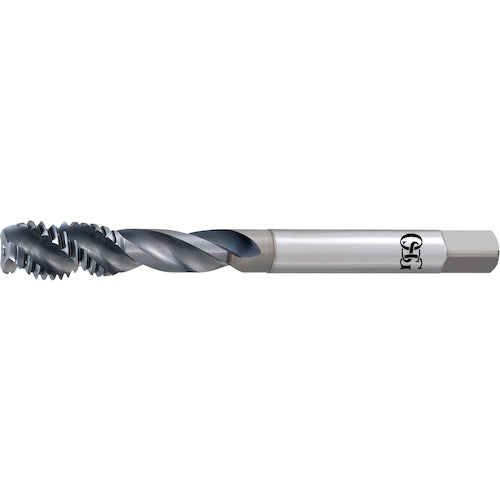

OSG High-Efficiency Multi-Function Tap Spiral Tap A-SFT 8325630 A-SFT STD+1 2.5P M2X0.4 1 piece

Catalog number: A-SFT STD+1 2.5P M2X0.4 Features: ●This revolutionary product has stable chip removal and can be used with a wide range of work materials and machines. Applications: ●Work material: low, medium, and high carbon steel, alloy steel, tempered steel (25-35HRC), stainless steel, tool steel, cast steel, ductile cast iron, copper, brass, brass castings, bronze, rolled aluminum, aluminum alloy castings, magnesium alloy castings, zinc alloy castings Specifications: ●Accuracy: OH2.5 ●Accuracy notation: STD+1 ●Nominal size: M2 ●Pitch (mm): 0.4 ●Thread length (mm): 3.2 ●Total length (mm): 40 ●Shank diameter (mm): 3 ●Shank square section (mm): 2.5 ●Pilot hole diameter (mm): 1.6 ●Machined thread: Metric thread ●Surface treatment: V coating Material/Finish: ●Powdered high speed steel (CPM)
