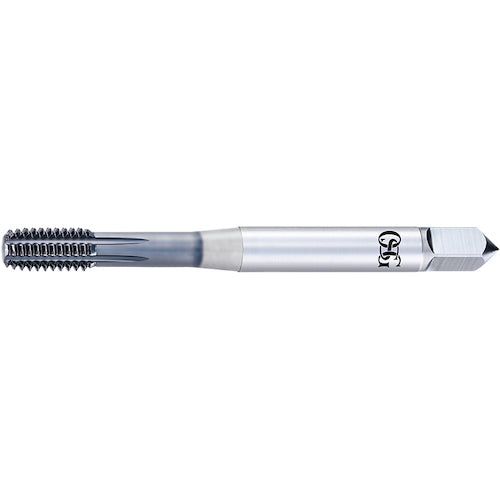

OSG High-efficiency, multi-function rolling tap A-XPF 8327828 A-XPF STD CPM B M2X0.4 1 piece

Catalog number: A-XPF STD CPM B M2X0.4 Features: ●No chip troubles compared to cutting taps for carbon steel and alloy steel, enabling long-life machining. ●Reduced tool change time due to chip troubles and machine downtime for removing accumulated chips, realizing energy savings. Applications: ● Low carbon steel (C to 0.25%): ◎, medium carbon steel (C 0.25% to 0.45%): ◎, high carbon steel (C 0.45% or more): ◎, alloy steel: ◎, tempered steel (25 to 35HRC): ◎, stainless steel (up to 35HRC): ◎, cast steel: ○, copper: ◎, brass: ◎, brass castings: ◎, aluminum rolled material: ◎, aluminum alloy castings: ◎, zinc alloy castings: ◎ Specifications: ● Precision: RH4 ● Precision notation: STD ● Nominal dimensions: M2 ● Pitch (mm): 0.4 ● Thread length (mm): 8 ● Overall length (mm): 40 ● Shank diameter (mm): 3 ● Shank square section (mm): 2.5 ● Countersink diameter (mm): 1.81 to 1.85 ● Number of engagement threads: 2 threads ● Machined thread: Metric thread ● Surface treatment: VI coating ● Machined hole type: Blind hole Material/Finish: Powder Metallurgy HSS
