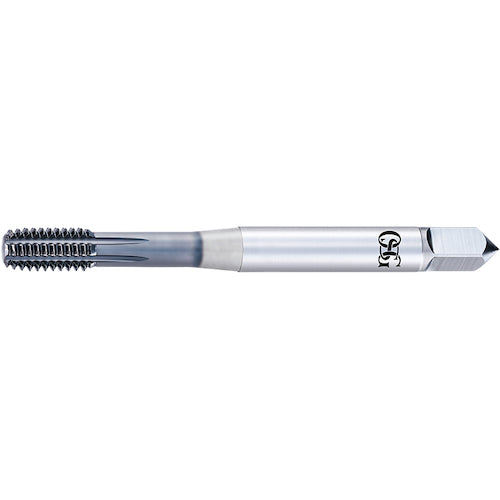

OSG High-efficiency, multi-function rolling tap A-XPF 8327846 A-XPF STD CPM B M5X0.8 1 piece

Catalog number: A-XPF STD CPM B M5X0.8 Features: ●Compared to cutting taps, there is no chip trouble in carbon steel and alloy steel, and it is possible to perform long-life machining. ●Reducing tool change time due to chip trouble and machine downtime for removing accumulated chips, it realizes energy saving. Applications: ● Low carbon steel (C to 0.25%): ◎, medium carbon steel (C 0.25% to 0.45%): ◎, high carbon steel (C 0.45% or more): ◎, alloy steel: ◎, tempered steel (25 to 35HRC): ◎, stainless steel (up to 35HRC): ◎, cast steel: ○, copper: ◎, brass: ◎, brass castings: ◎, aluminum rolled material: ◎, aluminum alloy castings: ◎, zinc alloy castings: ◎ Specifications: ● Precision: RH6 ● Precision notation: STD ● Nominal size: M5 ● Pitch (mm): 0.8 ● Thread length (mm): 11 ● Total length (mm): 60 ● Shank diameter (mm): 5.5 ● Shank square section (mm): 4.5 ● Countersink diameter (mm): 4.59 to 4.66 ● Number of engaging threads: 2 threads ● Machined thread: Metric thread ● Surface treatment: VI coating ● Machined hole type: Blind hole Material/Finish: Powder Metallurgy HSS
