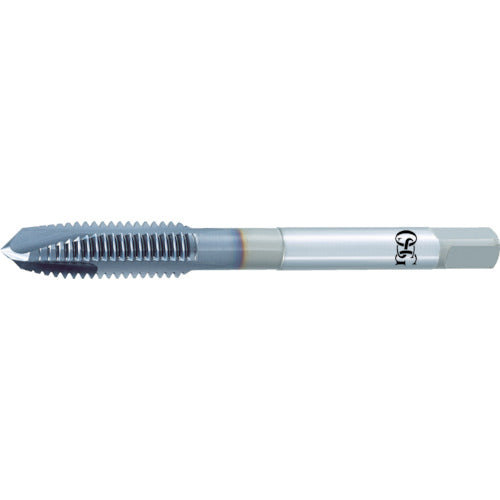

OSG A-point tap M3X0.5 8325069 A-POT-STD-M3X0.5 1 piece

Catalog number: A-POT-STD-M3X0.5 Features: ●This revolutionary product has stable chip removal and can be used with a wide range of work materials and machines. Applications: ●For through hole processing. ●Work material: low, medium, and high carbon steel, alloy steel, tempered steel (25 to 45HRC), stainless steel, tool steel, cast steel, ductile cast iron, copper, brass, brass casting, bronze, rolled aluminum, aluminum alloy casting, magnesium alloy casting, zinc alloy casting, titanium alloy. Specifications: ●Accuracy: OH3 ●Accuracy notation: STD ●Nominal size: M3 ●Pitch (mm): 0.5 ●Thread length (mm): 11 ●Total length (mm): 46 ●Shank diameter (mm): 4 ●Shank square section (mm): 3.2 ●Pilot hole diameter (mm): 2.5 ●Number of teeth: 5 teeth ●Machining thread: Metric thread ●Surface treatment: V coating Material/Finish: ●Powdered high speed steel (CPM)
