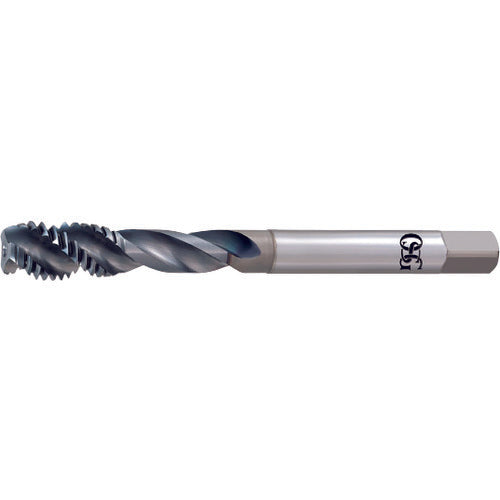

OSG A-Spiral Tap for Insert Screws A-SFT HL 8327759 A-SFT HL OH1.5 1.5P M3X0.5 1 piece

Catalog number: A-SFT HL OH1.5 1.5P M3X0.5 Features: ● A revolutionary product with stable chip removal and compatible with a wide range of work materials and machines. Applications: ● For low, medium and high carbon steel, alloy steel, tempered steel (25-35HRC), stainless steel, tool steel, cast steel, ductile cast iron, copper, brass, brass castings, bronze, rolled aluminum material, aluminum alloy castings, magnesium alloy castings, zinc alloy castings, and titanium alloys. Specifications: ● Precision: OH1.5 ● Nominal size: M3 ● Pitch (mm): 0.5 ● Thread length (mm): 4.8 ● Total length (mm): 48 ● Shank diameter (mm): 4 ● Shank square section (mm): 6 x 3.2 ● Counterbore diameter (mm): 3.15 ● Number of engagement threads: 1.5 threads ● Machined thread: M ● Surface treatment: V coating ● Number of grooves: 3 ● Neck length (mm): 20 Material/Finish: ● Powdered high speed steel (CPM)
