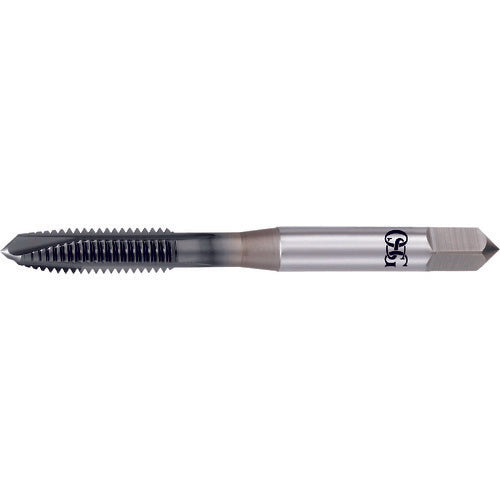

OSG A-point tap (end mill shank) A-POT 8325807 A-POT STD 5P M12X1.75-10 1 piece

Catalog number: A-POT STD 5P M12X1.75-10 Features: ● A revolutionary product with stable chip removal and compatibility with a wide range of work materials and machines. Applications: ● For low, medium and high carbon steel, alloy steel, tempered steel (25-45HRC), stainless steel, tool steel, cast steel, ductile cast iron, copper, brass, brass castings, bronze, rolled aluminum material, aluminum alloy castings, magnesium alloy castings, zinc alloy castings, and titanium alloys. Specifications: ● Precision: OH4 ● Precision notation: STD ● Nominal dimensions: M12 x 1.75-10 ● Pitch (mm): 1.75 ● Thread length (mm): 29 ● Total length (mm): 82 ● Shank diameter (mm): 10 ● Counterbore diameter (mm): 10.3 ● Number of engagement threads: 5 threads ● Machined thread: M ● Surface treatment: V coating ● Number of grooves: 3 ● Neck length (mm): 48 ● Tap grade: OH grade Material/Finish: ● Powdered high speed steel (CPM)
