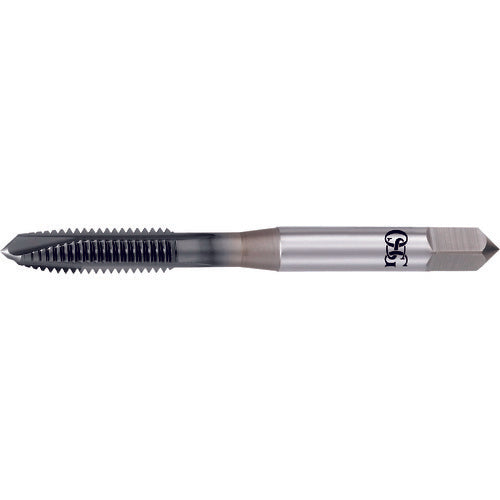

OSG A-point tap A-POT 8325039 A-POT STD 5P M1.6X0.35 1 piece

Catalog number: A-POT STD 5P M1.6X0.35 Features: ● A revolutionary product with stable chip removal and compatibility with a wide range of work materials and machines. Applications: ● For low, medium and high carbon steel, alloy steel, tempered steel (25-45HRC), stainless steel, tool steel, cast steel, ductile cast iron, copper, brass, brass castings, bronze, rolled aluminum material, aluminum alloy castings, magnesium alloy castings, zinc alloy castings, and titanium alloys. Specifications: ● Precision: OH1.5 ● Precision notation: STD ● Nominal size: M1.6 ● Pitch (mm): 0.35 ● Thread length (mm): 10 ● Total length (mm): 36 ● Shank diameter (mm): 3 ● Shank square section (mm): 5 x 2.5 ● Counterbore diameter (mm): 1.25 ● Number of engagement threads: 5 threads ● Machined thread: M ● Surface treatment: V coating ● Number of grooves: 2 ● Protrusion center: Yes Material/Finish: ● Powdered high speed steel (CPM)
