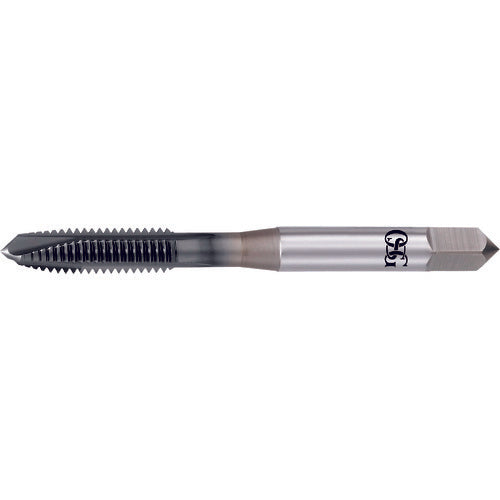

OSG A-point tap A-POT 8325461 A-POT STD+2 5P M4X0.7 1 piece

Catalog number: A-POT STD+2 5P M4X0.7 Features: ● A revolutionary product with stable chip removal and compatibility with a wide range of work materials and machines. Applications: ● For low, medium and high carbon steel, alloy steel, tempered steel (25-45HRC), stainless steel, tool steel, cast steel, ductile cast iron, copper, brass, brass castings, bronze, rolled aluminum material, aluminum alloy castings, magnesium alloy castings, zinc alloy castings, and titanium alloys. Specifications: ● Precision: OH5 ● Precision notation: STD+2 ● Nominal dimensions: M4 ● Pitch (mm): 0.7 ● Thread length (mm): 13 ● Total length (mm): 52 ● Shank diameter (mm): 5 ● Shank square section (mm): 7 × 4 ● Counterbore diameter (mm): 3.3 ● Number of engagement threads: 5 threads ● Machined thread: M ● Surface treatment: V coating ● Number of grooves: 3 ● Protrusion center: Yes ● Neck length (mm): 21 Material/Finish: ● Powdered high speed steel (CPM)
