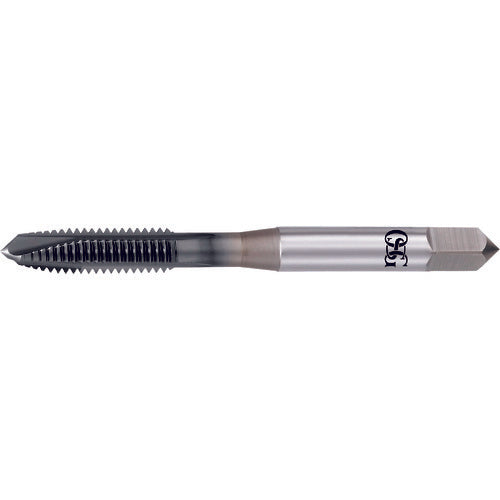

OSG A-point tap A-POT 8325478 A-POT STD+1 5P M6X1 1 piece

Catalog number: A-POT STD+1 5P M6X1 Features: ● A revolutionary product with stable chip removal and compatibility with a wide range of work materials and machines. Applications: ● For low, medium and high carbon steel, alloy steel, tempered steel (25-45HRC), stainless steel, tool steel, cast steel, ductile cast iron, copper, brass, brass castings, bronze, rolled aluminum material, aluminum alloy castings, magnesium alloy castings, zinc alloy castings, and titanium alloys. Specifications: ● Precision: OH4 ● Precision notation: STD+1 ● Nominal size: M6 ● Pitch (mm): 1 ● Thread length (mm): 19 ● Total length (mm): 62 ● Shank diameter (mm): 6 ● Shank square section (mm): 7 x 4.5 ● Counterbore diameter (mm): 5 ● Number of engagement threads: 5 threads ● Machined thread: M ● Surface treatment: V coating ● Number of grooves: 3 ● Protrusion center: Yes ● Neck length (mm): 29 Material/Finish: ● Powdered high speed steel (CPM)
