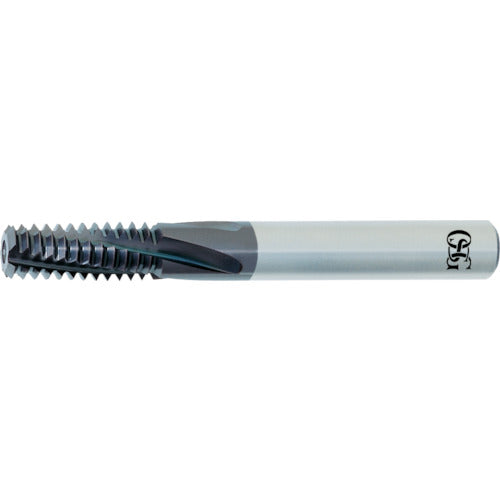

OSG NC Planet Cutter 3900086 WX-PNC-20 X51 P3 INT 1 piece

Catalog number: WX-PNC-20 X51 P3 INT Features: ●One tool can process threads with different nominal dimensions if they have the same pitch, and can process both right-handed and left-handed threads. ●Also used in the aircraft industry. Applications: ●Cutting materials: aluminum rolled materials, aluminum alloy castings, titanium alloys, Ni-based alloys, thermosetting plastics, thermoplastic plastics, low carbon steel, cast steel, cast iron, ductile cast iron, copper, brass, brass castings, bronze, magnesium alloy castings, zinc alloy castings. Specifications: ●Nominal size: M27 ●Pitch (mm): 3 ●Blade diameter (mm): 20 ●Blade length (mm): 51 ●Total length (mm): 120 ●Number of blades (pieces): 5 ●Shank diameter (mm): 20 ●Surface treatment: WX coating ●Total length L: 120 ●Blade length l: 51 ●Shank diameter d: 20 Material/Finish: ●Carbide
