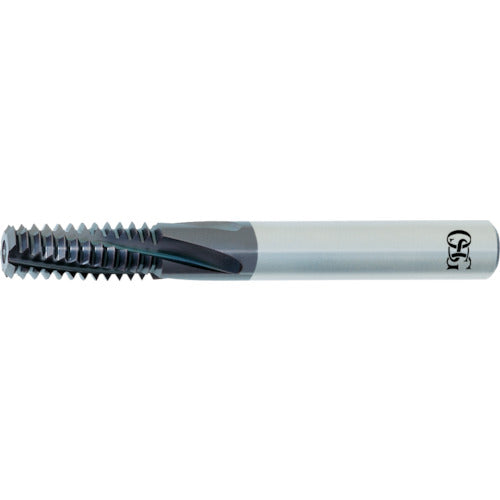

OSG NC Planet Cutter 3900380 WX-PNC-11.4X 22.6 U18 INT 1 piece

Catalog number: WX-PNC-11.4X 22.6 U18 INT Features: ●One tool can process threads of different nominal dimensions if they have the same pitch, and can process both right-handed and left-handed threads. ●Also used in the aircraft industry. Applications: ●Cutting materials: aluminum rolled material, aluminum alloy castings, titanium alloys, Ni-based alloys, thermosetting plastics, thermoplastic plastics, low carbon steel, cast steel, cast iron, ductile cast iron, copper, brass, brass castings, bronze, magnesium alloy castings, zinc alloy castings. Specifications: ●Nominal size: 9/16 ●Number of teeth: 18 ●Blade diameter (mm): 11.4 ●Blade length (mm): 22.6 ●Total length (mm): 85 ●Number of blades (pieces): 4 ●Shank diameter (mm): 12 ●Neck length (mm): 24 ●Surface treatment: WX coating ●Total length L: 85 ●Blade length l: 22.6 ●Shank diameter d: 12 Material/Finish: ●Carbide
