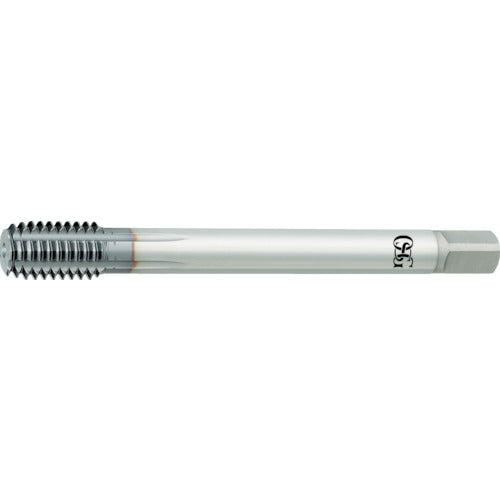

OSG X-Performer Forming Tap S-XPF 8321976 S-XPF-P-STD-M1.6X0.2 1 piece

Catalog number: S-XPF-P-STD-M1.6X0.2 Features: ●Compared to cutting taps, there is no chip trouble in carbon steel and alloy steel, and it is possible to perform machining with a long life. Applications: ●For through hole machining. ●Cutting materials: low, medium and high carbon steel, alloy steel, tempered steel (25 to 35 HRC), stainless steel, copper, brass, brass castings, rolled aluminum, aluminum alloy castings, zinc alloy castings, cast steel. Specifications: ●Accuracy: RH4 ●Accuracy notation: STD ●Nominal size: M1.6 ●Pitch (mm): 0.2 ●Thread length (mm): 8 ●Total length (mm): 36 ●Shank diameter (mm): 3 ●Shank square section (mm): 2.5 ●Number of engagement threads: 4 threads ●Machined thread: Metric thread Material/Finish: ●M1-2.6: Powdered high speed steel (CPM), M3-45: High speed steel (HSS-E) Caution: ●Pre-drilling the pilot hole has a large effect on the accuracy of the screw. ●Please be careful when drilling the pilot hole.
