OSHITARI High-performance water filter OMF filter Φ340 x 300 (Φ46) OMF-340F-125 1 box

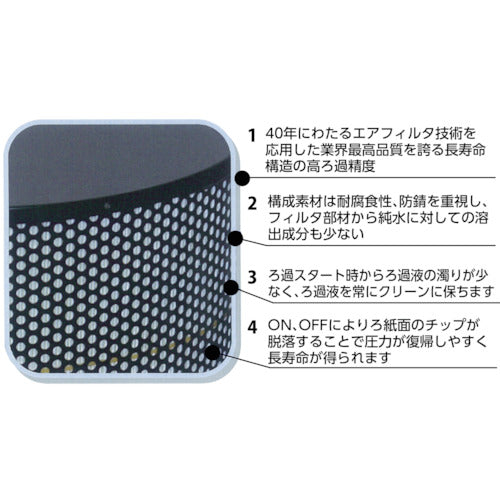

Catalog number: OMF-340F-125 Features: ● A long-life, high-filtration filter for EDM machines, with filter media that easily removes attached chips and a unique filter paper folding structure. ● There is very little turbidity at the start of filtration, and performance improvements can be expected, such as surface roughness, prevention of secondary discharge, extended life of ion exchange resin, and transparency of the clean tank. Applications: ● For mold processing. Specifications: Filtration accuracy: Fine Inner filter paper: None Compatible models: Fanuc α-(0B, 1B, 0C, 1C, 0iA, 1iA), AD-(0, 1) Sodick A, AQ, AG, SL, AP Dimensions (mm): φ340×300 Joint (shape): Shaft hole diameter 46mm Joint (material): Rubber Pressure (kg/cm2): Internal pressure (0.25MPa) Outer diameter: φ340mm×height 300mm Hole diameter φ46mm Maximum operating pressure: 0.25MPa Super Filter Series Material/Finish: Top plate, outer cylinder: Resin, iron Filter paper: Chemical fiber Paint: Electrochemical coating Caution: When the built-in pressure gauge indicates 0.25MPa, replace with a new filter. When replacing, be sure to wear gloves after stopping the machine. The used filter will be heavy with water, sludge, etc., so please remove it carefully.
