OSHITARI High-performance Water Filter OMF Filter Φ340 x 300 2 pieces OMF-340FK 1 box

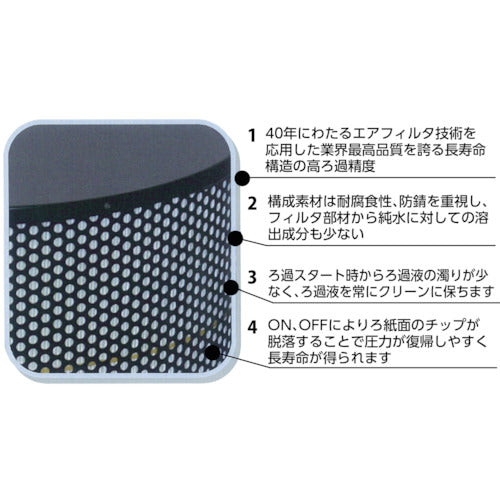

Catalog number: OMF-340FK Features: ● A long-life, high-filtration filter for EDM machines, with filter media that easily removes attached chips and a unique filter paper folding structure. ● There is very little turbidity at the start of filtration, and performance improvements can be expected, such as surface roughness, prevention of secondary discharge, extended life of ion exchange resin, and transparency of the clean tank. Applications: ● For mold processing. Specifications: ● Filtration accuracy: Standard ● Inner filter paper: None ● Compatible models: Mitsubishi Electric FX, CX, DWC-532, BA-8, Makino Milling U, UP, W, FB, SP, EU, UH, DUO, UPJ, Seibu Electric EW-(A5S2, C5S, C5S2, M500S), M, MM, Super ● Dimensions (mm): φ340 x 300 ● Joint (shape): Coupling ● Joint (material): ABS resin ● Pressure (kg/cm2): Internal pressure (0.25MPa) ● Coupler (shape): Yes ● Coupler (material): ABS resin ● Outer diameter: φ340mm x height 300mm ● Maximum operating pressure: 0.25MPa ● Super Filter Series Material/Finish: ● Top plate, outer tube: Resin, iron ● Filter paper: Chemical fiber ● Coating: Electrochemical coating Caution: ● Replace with a new filter when the built-in pressure gauge indicates 0.25 MPa. ● Be sure to wear gloves when replacing the filter after stopping the machine. The used filter will be heavy with water, sludge, etc., so remove it carefully.
