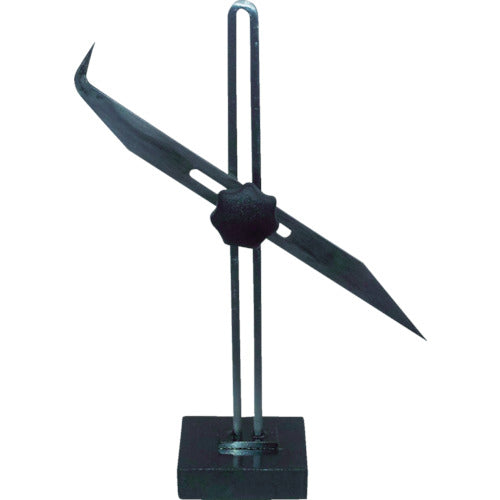

OSS Toscan (surface gauge) OS-164 square base 164-200S 1 unit

Catalog number: 164-200S Features: ● Allows for stable marking. ● Can draw a horizontal line directly on the object at any height. ● The tip of the marking needle is hardened. ● Useful when producing symmetrical workpieces. Applications: ● For marking the surface of the object. ● For positioning during machining and simple inspection of parallel planes. Specifications: ● Square base (mm) width: 70 ● Square base (mm) depth: 45 ● Square base (mm) height: 25 ● Nominal dimensions (mm): 200 ● Trapezoid shape: Square base Material/Finish: ● Base: Cast iron ● Marking needle: Carbon steel for mechanical construction Caution: ● For stable work, use a surface plate in conjunction with the tool.
