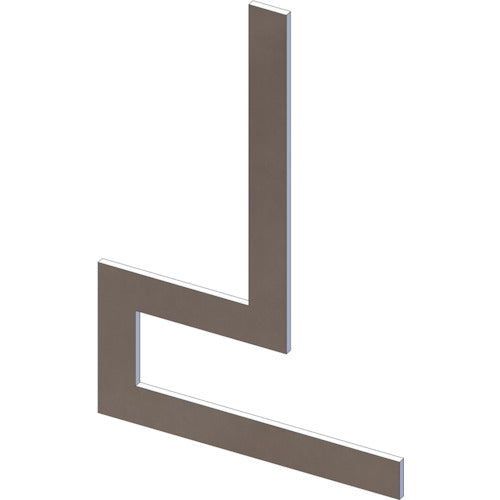

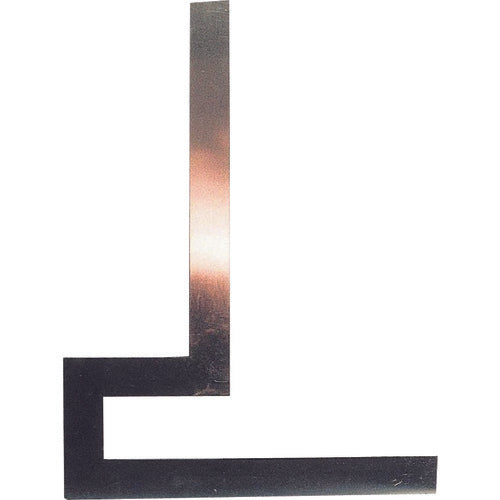

OSS Flange Square H Square 400 x 300 170-400 1 pc

Catalog number: 170-400 Features: ●Ideal for right-angle checking and alignment of various flanges (oil and water pipes, etc.). ●Industrial vacuum packaging is used, which is effective in preventing dust, rust, and deterioration. Applications: ●For right-angle checking and alignment of various flanges (oil and water pipes, etc.). Specifications: ●Width (mm): 50 ●Thickness (mm): 5 ●Total length (mm): 400 ●Total width (mm): 300 ●Length (mm): 315 ●Depth (mm): 100 ●Nominal dimensions (mm): 400 ●Shape: Flange type ●Accuracy (μm): 60 ●Accuracy JIS Class 2: Within ±(20+total length/10)μm Material/Finish: ●General structural rolled steel
