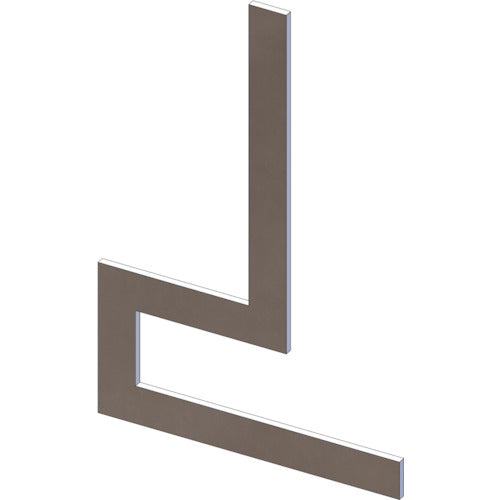

OSS Flange Square H Square 500 x 400 170-500 1 pc

Catalog number: 170-500 Features: ●Ideal for right-angle checking and alignment of various flanges (oil and water pipes, etc.). ●Industrial vacuum packaging is used, which is effective in preventing dust, rust, and deterioration. Applications: ●For right-angle checking and alignment of various flanges (oil and water pipes, etc.). Specifications: ●Width (mm): 50 ●Thickness (mm): 5 ●Total length (mm): 500 ●Total width (mm): 400 ●Length (mm): 415 ●Depth (mm): 100 ●Nominal dimensions (mm): 500 ●Shape: Flange type ●Accuracy (μm): 70 ●Accuracy JIS Class 2: Within ±(20+total length/10)μm Material/Finish: ●General structural rolled steel
