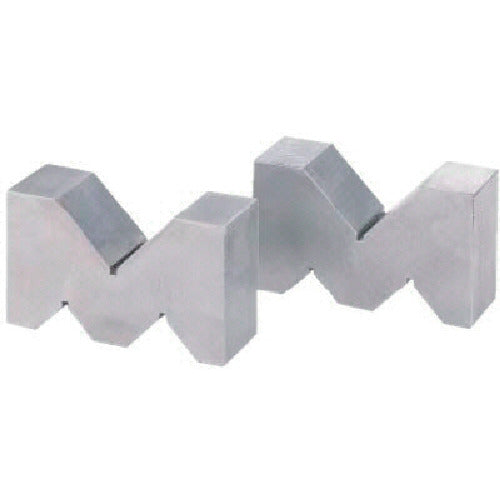

OSS Cast Iron Precision Yagen Table Type A OS-126 150 Machine Finish 126-150K 1 Set

Catalog number: 126-150K Features: ●The V groove is finished at 90° and is used for simple inspection of cylinders and marking of round bars. ●A set of two is machined as one unit. ●Precision is machine finished and Class A finish (parallelism of each surface, ± squareness, parallelism of the bottom surface and V groove). ●Class A finish of 100 mm or more is polished and then scraped. ●Industrial vacuum packaging is used, so it is effective in preventing dust, rust, and deterioration. ●Same processing is also possible for multiple sets upon request. Applications: ●For marking of round bars, blocks for raising the height, etc. ●For simple inspection of cylinders, etc. Specifications: ●Width (mm): 150 ●Depth (mm): 60 ●Height (mm): 90 ●Parallelism of the bottom surface and V groove (μm): 75 ●Finish: Machine finish ●Grade (grade): Machine finish Material/Finish: ●Cast iron Note: ●Not suitable for precision measurement. (Low-priced precision V-block) *If you would like to order two or more sets of the same processed products, an additional fee will be charged, so please request a quote in advance. *Not suitable for precision measurement.
