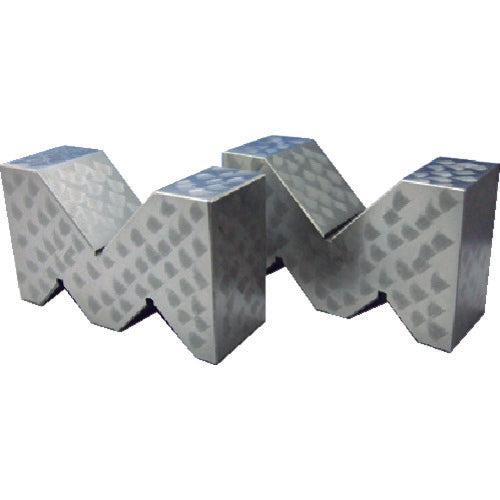

OSS Cast Iron Precision Yagen Table Type A OS-126 150 A Class 126-150A 1 Set

Catalog number: 126-150A Features: ●The V groove is finished at 90 degrees and is used for precision inspection of cylinders and marking of round bars. ●Two pieces are processed as one unit. ●Precision is machine finished and A-class finish (parallelism of each surface, ± squareness, parallelism of the bottom surface and V groove). ●A-class finish of 100 mm or more is polished and then scraped. ●Industrial vacuum packaging is used, which is effective in preventing dust, rust, and deterioration. ●Same processing is also possible for multiple sets upon request. Applications: ●For precision inspection of cylinders, etc. Specifications: ●Width (mm): 150 ●Depth (mm): 60 ●Height (mm): 90 ●Parallelism of the bottom surface and V groove (μm): 30 ●Finish: Polished finish + scraped ●Polished finish + scraped ●Grade (grade): Grade A Material/Finish: ●Cast iron Note: ●If multiple sets are purchased, there will be variations in dimensions such as height for each set. ●If you would like to order two or more sets of the same processed products, an additional charge will apply, so please request a quote in advance.
