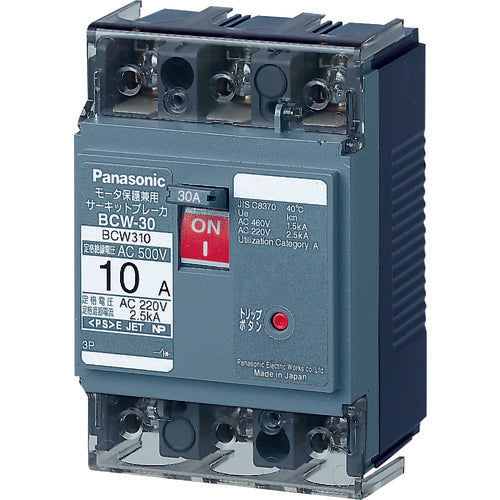

Panasonic Circuit Breaker BCW-30 3P1 BCW310 1 piece

Catalog number: BCW310 Features: ● Used for overload, short circuit and motor protection. ● For direct start only. Applications: ● For mounting inside a box. (Terminal cover included) Specifications: ● Number of poles and elements: 3P3E ● Rating: 10A ● Width (mm): 70 ● Length (mm): 52 ● Height (mm): 106 ● Suitable wire: φ1.6-2.6, 2-14m [M2] ● Rated insulation voltage: AC500V ● Insulation resistance: 5MΩ or more ● Withstand voltage performance: 2500V x 1 minute
