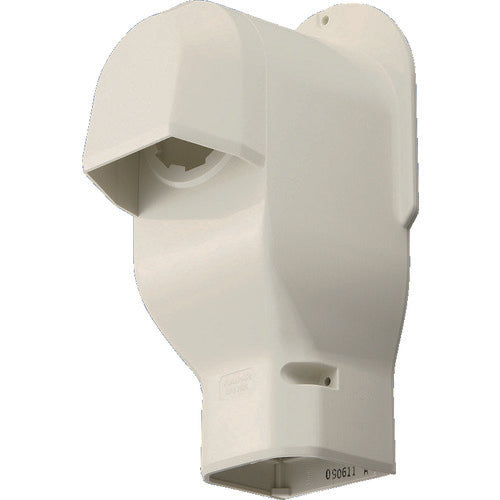

Panasonic Wall Mounted Cover for Air Conditioners with Dust Exhaust and Ventilation Functions, Ivory, DAS2605W, 1 Piece

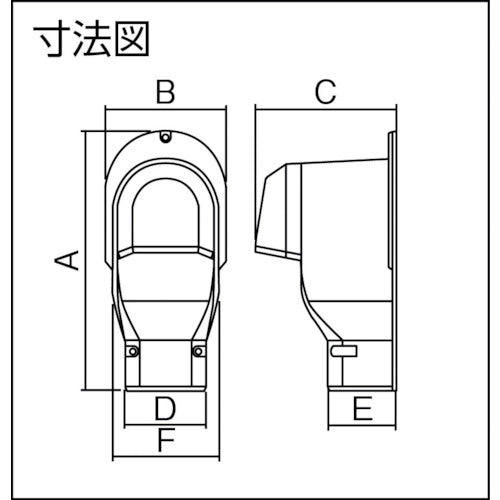

Catalog number: DAS2605W Features: ● A decorative cover used for the part where the coated copper pipe is pulled out from the wall. ● For air conditioners with dust exhaust and ventilation functions. ● The weather cap part can be adjusted at 45° pitch, and is a snap-in type that does not require screws. ● For decorative plates of φ100 or less and thickness of 3mm or less, it can be covered from above without removing it. Uses: ● Decorative cover for air conditioner piping. Specifications: ● Color: Ivory ● Model: 60 model ● Depth (mm): 126.2 ● Width (mm): 108 ● Height (mm): 232.5 ● A (mm): 232.5 ● B (mm): 108 ● C (mm): 126.2 ● D (mm): 73 ● E (mm): 61 ● F (mm): 95.2 ● Size of decorative plate that can be hidden: φ100, thickness 3mm Material / Finish: ● Synthetic resin
