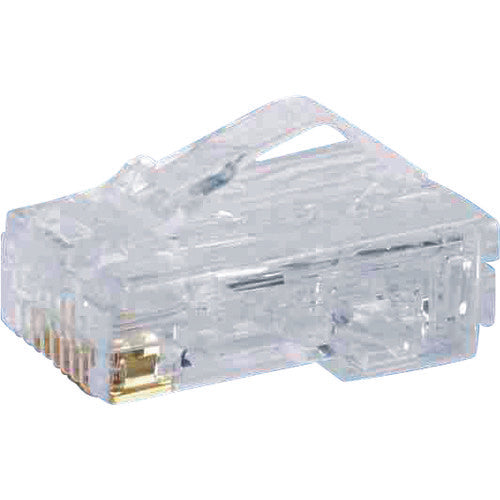

PANDUIT Category 5E Modular Plug for Thin Cable AWG28 Solid Wire/Stranded Wire 100 Pieces MP528-C MP528-C 1 Bag

Catalog number: MP528-C Features: * Arched lever prevents lever breakage due to plug removal or other factors. * Passed 2500 mating cycles. * Zigzag contact arrangement significantly reduces the effects of crosstalk. Applications: * CAT5E communication connector. Specifications: ●Type: Category 5e ●Compatible cable: AWG28 solid and stranded wire ●Type: For thin cables ●Plug type: RJ45 ●Operating temperature range (℃): -10 to 60 ●Conductor outer diameter: AWG28 solid and stranded wire ●Insulator outer diameter (mm): Maximum φ0.69 ●Outer coating diameter (mm): φ3.51 to φ4.11 ●Conductor outer diameter: AWG28 solid and stranded wire ●Insulator outer diameter: Maximum φ0.69mm ●Outer coating diameter: φ3.51mm to φ4.11mm UTP ●Termination support tool: SGPT ●Crimping tool: MPT5-8AS, MPT5E ●For indoor use
