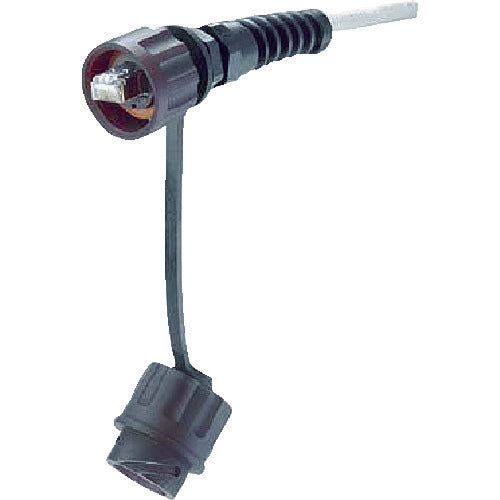

PANDUIT Category 5E Waterproof and Dustproof Modular Plug MPI588T 1 piece

Catalog number: MPI588T Features: ●An industrial Ethernet connector with water and dust resistance conforming to IP67. ●Comes with a protective cap that maintains water and dust resistance conforming to IP67 when not connected. ●Complies with TIA, ODVA and IEC standards for sealed Ethernet/IP RJ45 connections. ●Bulkhead anti-rotation washer eliminates the possibility of module rotation. ●The modular jack cap has a wiring order sticker to prevent installation errors. Applications: ●Connecting LAN cables in adverse environments such as factories, factory offices, commercial buildings and homes. Specifications: ●Color: Black ●Category: Cat5e ●Type: Category 5e ●Compatible jack: RJ45 ●Compatible cable: Stranded wire and solid wire ●Cable type: Twisted pair cable compatible with Categories 3, 5, and 5e ●Conductor outer diameter: Solid wire and twisted conductor wire of φ0.4 [mm] (AWG26) to φ0.51 [mm] (AWG24) ●Insulation outer diameter: φ0.889 [mm] to φ1.016 [mm] ●Outer coating diameter: UTP of φ4.826 [mm] to φ6.35 [mm] is set ●Operating temperature range: -10 to 60°C Material/Finish: ●Plug holder: Glass-fiber reinforced polybutylene terephthalate (PBT) Note: ●Crimping tool: MPT5-8AS is required.
