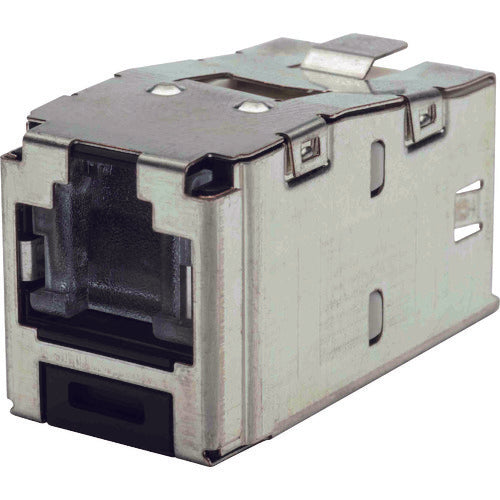

PANDUIT Category 5E RJ45 Modular Jack Shielded TG Type CJSH5E88TGY CJSH5E88TGY 1 pc

Catalog number: CJSH5E88TGY Features: ●Designed to meet ANSI/TIA-568-C.2 Category 5e standards. ●100% tested to ensure NEXT performance. ●Termination caps provide superior strain relief, control cable bend radius, and hold wires securely. ●Shutter prevents dust and other contaminants from entering when not in use. Uses: ●For LAN wiring Specifications: ●Color: Silver ●Category: Cat5e ●Type: CAT5e/Shielded ●Compatible cables: AWG22-26 solid and stranded wire ●Length (mm): 38.1 ●Width (mm): 18.77 ●Length (mm): 15.87 ●Height (mm): 38.13 ●Operating temperature range (℃): -10 to 65 ●Insulation outer diameter: Maximum Φ1.52mm ●Outer coating diameter: Φ5.08mm to Φ8.38mm ●Auxiliary tool: EGJT-1 ●Operating temperature range: -10 to 65℃ ●For indoor use
