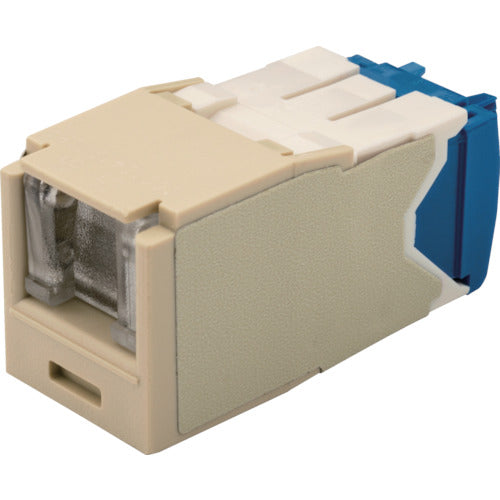

PANDUIT Category 6A Shuttered Modular Jack Ivory CJH6X88TGEI 1 pc

Catalog number: CJH6X88TGEI Features: *When the plug is connected, the shutter is pushed inward, eliminating the need to open and close the shutter by hand. *Equipped with a shutter to prevent dust and other particles from entering when not in use. *Bulk pressure welding makes installation quick and easy. *Structure minimizes untwisting of the cable. Applications: *Category 6A communications connector. Specifications: ●Color: Ivory ●Category: Category 6A ●Type: Category 6A ●Number of ports: 1 ●Compatible jacks: 1 ●Compatible cables: AWG22-26 solid or twisted wire ●Length (mm): 38.15 ●Width (mm): 16.06 ●Height (mm): 18.06 ●Operating temperature range (℃): -10 to 65 ●Insulation outer diameter: Maximum Φ1.52mm ●Outer coating diameter: Φ5.08 to 8.38mm ●For indoor use ●Operating temperature range: -10 to 65℃ ●Auxiliary tools: EGJT-1 Material/Finish: ●ABS resin, polycarbonate, phosphor bronze, glass epoxy multi-layer type
