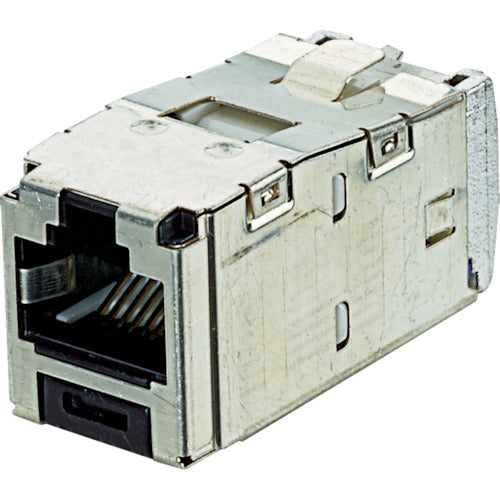

PANDUIT Category 6A Shielded Modular Jack CJS6X88TGY 1 piece

Catalog number: CJS6X88TGY Features: ●Can terminate shielded solid and stranded cables of AWG22 to 26. Applications: ●Twisted pair cable compatible with categories 3, 5, 5e, 6, 6A, and 10GBASE-T. ●Connector for category 6A communications. Specifications: ●Color: Gray ●Category: Cat6A ●Type: Category 6A ●Compatible cable: Stranded and solid ●Length (mm): 38.1 ●Conductor outer diameter: φ0.4mm (AWG26) to φ0.65mm (AWG22) solid and stranded conductor ●Insulator outer diameter: Maximum φ1.524mm ●Outer coating diameter: φ5.08mm to φ8.38mm ●Operating temperature range: -10 to 65°C ●For indoor use ●Auxiliary tools: EGJT-1 Material/Finish: ●Shield fittings: Phosphor bronze
