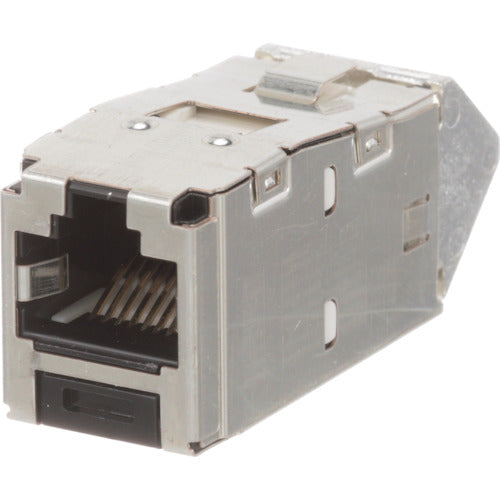

PANDUIT Category 6A 45 degree up/down angle shielded modular jack black CJSUD6X88TGY CJSUD6X88TGY 1 piece

Catalog number: CJSUD6X88TGY Features: ● Shielded modular jack that allows cable insertion at 45 degrees up or down. ● Cable can be inserted at 45 degrees up or down, making it suitable for use in places with limited space or when pulling out the cable at an angle. ● Jack connection is possible in a small space while maintaining the proper bend radius and ensuring performance, and keeping the cable appearance neat. Applications: ● For jack connection with angled shield. Specifications: Color: Black Category: Cat6A Type: 45 degree shielded angle with caps Number of ports: 1 Compatible cables: AWG22-26 shielded solid or twisted wire Length (mm): 44.1 Width (mm): 15.9 Depth (mm): 44.1 Height (mm): 18.8 Type: Shielded Operating temperature range (℃): -10 to 65 Insulation outer diameter: Maximum φ1.52mm Outer coating diameter: φ5.08mm to 8.38mm For indoor use Auxiliary tools: TGSJT
