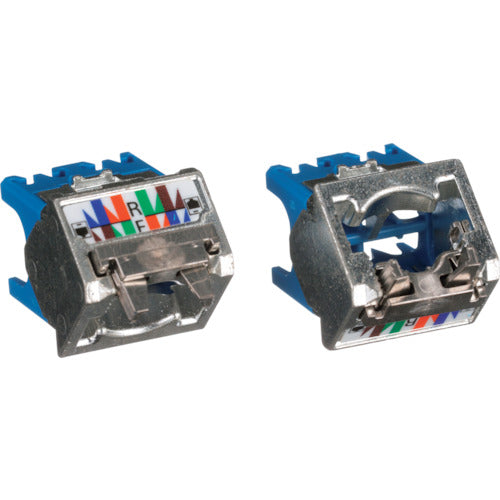

PANDUIT Category 6A 45 degree shielded angle shielded modular jack cap blue CJSUDCAPBU-X CJSUDCAPBU-X 1 bag

Catalog number: CJSUDCAPBU-X Features: ● Cap for shielded modular jacks that allow cable insertion at 45 degrees up and down. ● When combined with a shielded modular jack, the cable can be inserted at 45 degrees up and down. ● Suitable for use when pulling out the cable at an angle or in places with limited space. ● Allows jack connection in a narrow space while maintaining the appropriate bending radius and ensuring performance, and improving the appearance of the cable. Applications: ● For jack connection with angled shield. Specifications: ● Color: Blue ● Category: Cat6A ● Type: 45 degree shield angle cap up and down ● Number of ports: 1 ● Compatible jack: CAT6A shielded modular jack ● Compatible cable: AWG22-26 shielded solid or twisted wire ● Length (mm): 24.4 ● Type: Shielded ● Operating temperature range (℃): -10 to 65 ● Insulator outer diameter (mm): Maximum φ1.52 ● Outer coating diameter (mm): φ5.08mm to 8.38 ● For indoor use
