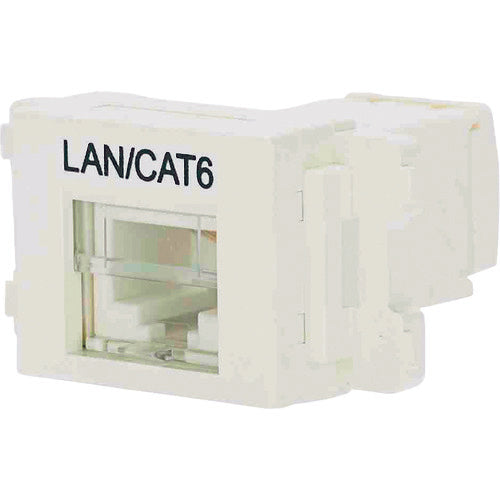

PANDUIT Category 6 JIS Plate Jack Kit Off-White JASSP6TGIW 1 pc

Catalog number: JASSP6TGIW Features: ●A kit of modular jacks and adapters. ●Short depth improves installation. ●Can be mounted on standard JIS wall plates and comes with a spring-loaded slide shutter for dust prevention. ●Can be mounted on JIS plates. Applications: ●Jack kit for JIS plates Specifications: ●Color: Off-white ●Category: Cat6 ●Type: CAT6 ●Number of ports: 1 ●Length (mm): 41.8 ●Width (mm): 43.94 ●Thickness (mm): 22.35 ●Height (mm): 22.3 ●Operating temperature range (℃): -10 to 65 ●Printing: LAN/CAT6 ●Compatible with category 3, 5, 5e, and 6 twisted pair cables. ●Conductor outer diameter: φ0.4mm (AWG26) to φ0.65mm (AWG22) solid wire and conductor stranded wire. ●Maximum insulation outer diameter: φ1.52mm. ●Available for UTP with outer coating diameter of φ5.08 to 8.38 mm. ●Termination tool: EGJT-1 Material/Finish: ●Adapter...Adapter body: ABS/synthetic resin, slide shutter: polycarbonate, spring: iron spring/coil type. ●Modular jack...Housing: ABS/synthetic resin, contact carrier: ABS/synthetic resin, termination cap: polycarbonate/synthetic resin, printed circuit board: glass epoxy multi-layer type, plug contact part: phosphor bronze, IDC part: phosphor bronze. Set contents/Accessories: ●Adapter for JIS plate. ●Category 6 modular jack (Model number: CJ688TGIW)
