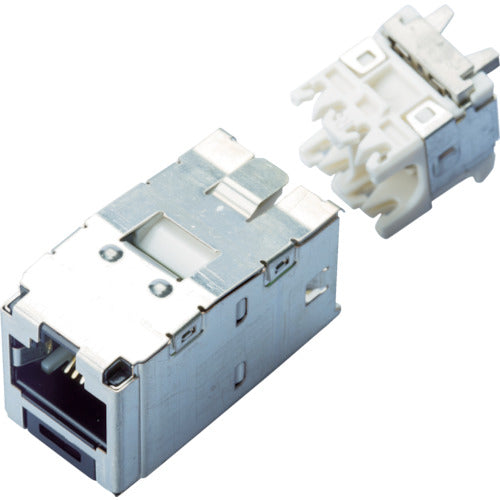

PANDUIT Category 6 Shielded Modular Jack CJS688TGY 1 piece

Catalog number: CJS688TGY Features: ●Can terminate shielded solid wire and stranded wire cables of AWG22 to 26. Applications: ●Shielded modular jack ●The cap part has a wiring order sticker to prevent installation errors. ●Connects LAN cables. Specifications: ●Color: Silver ●Category: Cat6 ●Type: Category 6 ●Compatible jack: RJ45 ●Compatible cable: Stranded wire, solid wire ●Length (mm): 38.1 ●Conductor outer diameter: φ0.4mm (AWG26) to φ0.65mm (AWG22) solid wire and conductor stranded wire ●Insulator outer diameter: Maximum φ1.52mm ●Outer coating diameter: φ5.08mm to φ8.38mm ●Operating temperature range: -10 to 65°C ●For indoor use ●Auxiliary tools: EGJT-1 Material/Finish: ●Shield fittings: Phosphor bronze
