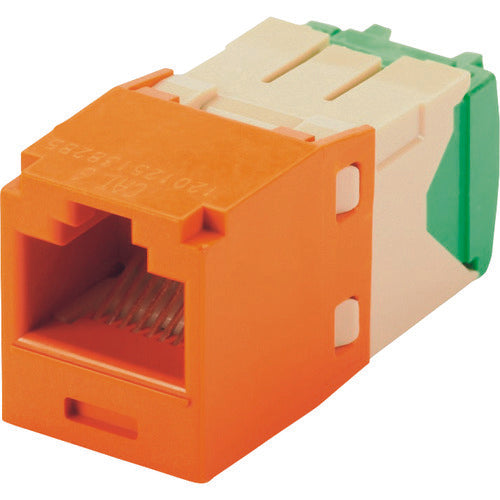

PANDUIT Category 6 Modular Jack (thin type) TG type 28/30 AWG Orange CJT688TGOR 1 piece

Catalog number: CJT688TGOR Features: ●Designed to meet ANSI/TIA-568-C.2 Category 6 standards. ●100% tested to ensure NEXT performance. ●Termination caps provide superior strain relief, control cable bend radius and hold wires tightly. Applications: ●For Category 6 LAN cabling. Specifications: Color: Orange Category: Category 6 Type: UTP Number of ports: 1 Compatible jack: Cat6 Compatible cable: AWG28 solid stranded wire/AWG30 solid wire Length (mm): 15.87 Width (mm): 38.16 Width (mm): 38.1 Depth (mm): 15.7 Height (mm): 18.28 Operating temperature range (℃): -10 to 65 Operating temperature range: -10 to 65℃ For indoor use Insulation outer diameter: Maximum Φ0.635mm Outer coating diameter: Φ3.046mm to Φ4.699mm Twisted pair cable compatible with categories 3, 5, 5E, 6 Conductor outer diameter: ΦAWG28 solid wire/twisted wire, ΦAWG30 solid wire Auxiliary tool: EGJT-1
