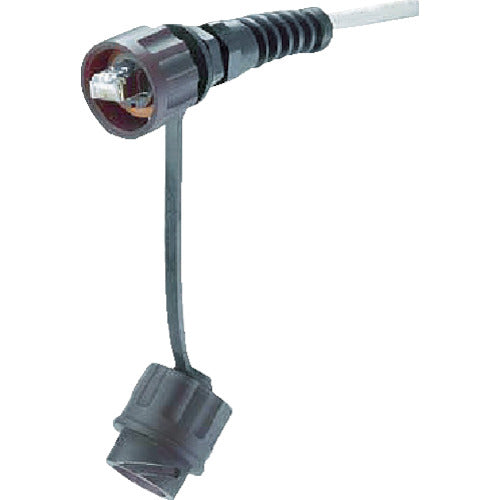

PANDUIT Category 6 Waterproof and Dustproof Shielded Modular Plug MPSI588T 1 pc

Catalog number: MPSI588T Features: ●An industrial Ethernet connector with water and dust resistance conforming to IP67. ●Comes with a protective cap that maintains water and dust resistance conforming to IP67 when not connected. ●Complies with TIA, ODVA and IEC standards for sealed Ethernet/IP RJ45 connections. ●Bulkhead anti-rotation washer eliminates the possibility of module rotation. ●The modular jack cap has a wiring order sticker to prevent installation errors. Applications: ●Connecting LAN cables in adverse environments such as factories, factory offices, commercial buildings and homes. Specifications: ●Color: Black ●Category: Cat5e ●Type: Category 5e, shielded ●Compatible jack: RJ45 ●Compatible cable: Stranded wire and solid wire ●Cable type: Twisted pair cable compatible with Categories 3, 5, 5e ●Conductor outer diameter: φ0.4 [mm] (AWG26) to φ0.51 [mm] (AWG24) solid wire and twisted conductor wire ●Insulation outer diameter: φ0.889 [mm] to φ1.016 [mm] ●Outer coating diameter: ScTP, FTP or STP set from φ4.826 [mm] to φ5.461 [mm] ●Operating temperature range: -0 to 60°C Material/Finish: ●Plug holder: Glass-fiber reinforced polybutylene terephthalate (PBT) Note: ●Crimping tool: MPT5-8AS is required.
