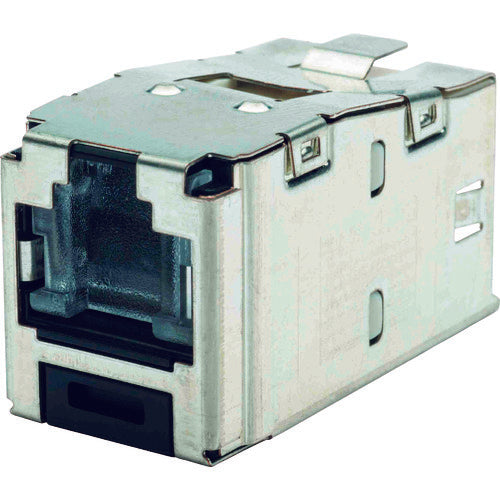

PANDUIT Category 6 RJ45 Modular Jack Shielded TG Type CJSH688TGY CJSH688TGY 1 pc

Catalog number: CJSH688TGY Features: ●Designed to meet ANSI/TIA-568-C.2 Category 6 standards. ●100% tested to ensure NEXT performance. ●Termination cap provides excellent strain relief, controls cable bend radius, and holds wires securely. ●Shutter prevents dust and other intrusion when not in use. Applications: ●For LAN wiring Specifications: ●Color: Silver ●Category: Cat6 ●Type: CAT6/Shielded ●Compatible cable: AWG22-26 solid and stranded wire ●Length (mm): 38.1 ●Width (mm): 18.77 ●Length (mm): 15.87 ●Height (mm): 38.13 ●Operating temperature range (℃): -10 to 65 ●Insulation outer diameter: Max. Φ1.52mm ●Outer coating diameter: Φ5.08mm to Φ8.38mm ●Auxiliary tool: EGJT-1 (sold separately)
