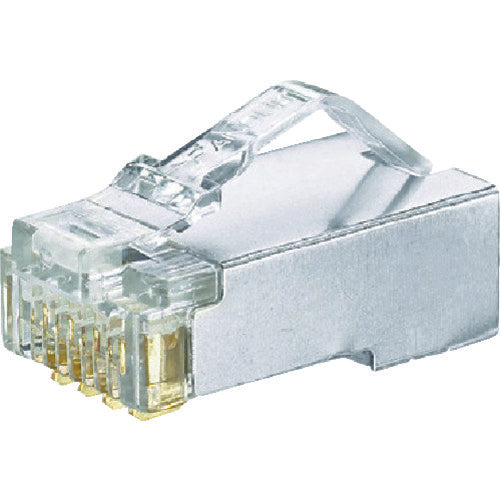

PANDUIT Shielded Modular Plug LAN Connector Category 5E 100 Pieces MPS588-C MPS588-C 1 Bag

Catalog number: MPS588-C Features: ● L-shaped claws prevent claw breakage. ● The contact arrangement is zigzag to significantly reduce the effect of stroke. ● Can be used with both solid and stranded wires. ● The contact arrangement is zigzag to significantly reduce the effect of stroke. ● March-shaped claws prevent lever breakage when connecting and disconnecting plugs. Applications: ● Connecting LAN cables in adverse environments such as inside factories, factory offices, commercial buildings, and homes. Specifications: ●Type: Category 5e ●Compatible cables: AWG26-24 (solid wire, twisted wire) ●Type: Shielded ●Plug type: RJ45 ●Operating temperature range (℃): -10 to 60 ●Conductor outer diameter: φ0.4mm (AWG26) to φ0.51mm (AWG24) solid wire and stranded conductor ●Insulator outer diameter: φ0.889mm to φ1.016mm ●Outer coating diameter: STP φ5.334mm to φ6.35mm ●Operating temperature range: -10 to 60℃ ●For indoor use ●Crimping tool: MPT5-8AS, MPT5E Material/Finish: ●Housing: Thermoplastic ●Contacts: Phosphor bronze ●Shield: Brass, shiny nickel plated
