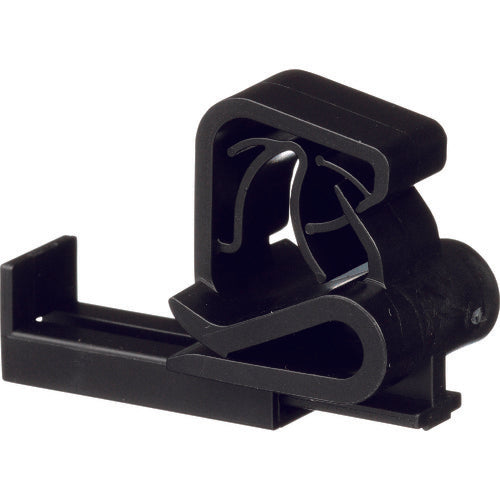

PANDUIT Solar Clips, Parallel Type for Mounting Inside Frames, with Stopper, Weather Resistant Black, Pack of 100, UCCPU-C130, 1 Bag

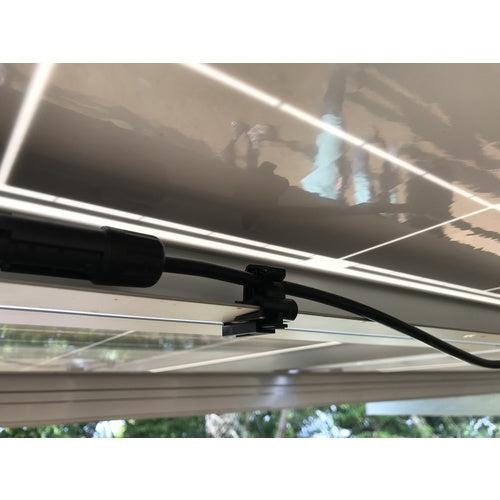

Catalog number: UCCPU-C130 Features: ●Solar Clip is a cable wiring fixture for solar panels that was developed based on feedback from the field. ●This clip fixes the cable to the frame on the back of the solar panel. ●Since the cable can be fixed without using cable ties, work efficiency is greatly improved. ●There is no variation in work and a uniform finish is possible. ●The 100% resin structure eliminates concerns about dissimilar metal corrosion with the aluminum frame and does not scratch the frame. ●Weather resistant for over 20 years outdoors. ●Comes with an adjustable stopper (20 to 35 mm) to securely fix it to the frame. ●Three types of clips allow the cable to be wired crosswise or parallel to the frame. Uses: ●For fixing cable wiring for solar panels. Specifications: ●Color: Black ●Length (mm): 19.5 ●Width (mm): 22.33 ●Height (mm): 30.52 ●Fixing method: Stopper ●Applicable frame width: 20 to 35 mm ●Applicable frame thickness: 1 to 3 mm ●Applicable number of cables: 1 to 2 ●Applicable cable outer diameter: φ6.0 to 7.5 mm (suitable for 3.5, 5.5SQ) ●Operating temperature range: -40 to 85°C ●Indoor and outdoor Material/Finish: ●Weather-resistant polyacetal Set contents/Accessories: ●100 clips, 100 stoppers Note: ●This is installed inside the frame and is parallel wiring.
