PANDUIT Solar Clips, Parallel Type for External Frame Mounting, with Stopper, Weather Resistant Black, Pack of 100, UCCPD-C130, UCCPD-C130, 1 Bag

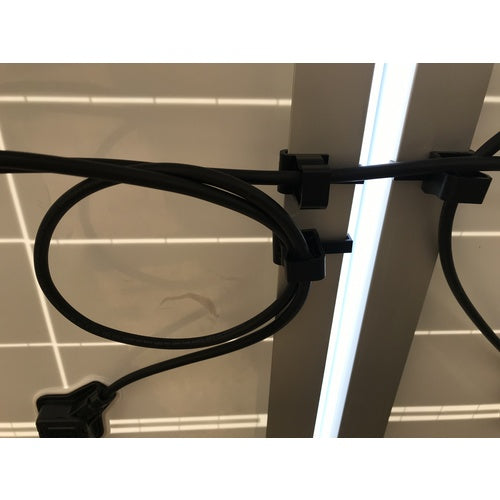

Catalog number: UCCPD-C130 Features: ●Solar Clip is a cable wiring fixture for solar panels that was developed based on feedback from the field. ●Clip for fixing cables to the frame on the back of the solar panel. ●Cables can be fixed without using cable ties, greatly improving work efficiency. ●No variation in work and a uniform finish is possible. ●100% resin structure eliminates concerns about dissimilar metal corrosion with the aluminum frame and does not scratch the frame. ●Weather resistant for over 20 years outdoors. ●Comes with an adjustable stopper (20-35 mm) to securely fix to the frame. ●3 types of clips allow cables to be wired crosswise or parallel to the frame. Uses: ●For fixing cable wiring for solar panels. Specifications: ●Color: Black ●Length (mm): 19.5 ●Width (mm): 22.33 ●Height (mm): 31.66 ●Fixing method: Stopper ●Compatible range (mm): 20-35 ●Thickness (mm): 1-3 ●Applicable frame width: 20-35mm ●Applicable frame thickness: 1-3mm ●Number of applicable cables: 1-2 ●Applicable cable outer diameter: φ6.0-7.5mm (suitable for 3.5, 5.5SQ) ●Operating temperature range: -40 to 85°C ●Indoor and outdoor Material/Finish: ●Weather-resistant polyacetal Set contents/Accessories: ●100 clips, 100 stoppers Note: ●This is for external attachment to the frame and parallel wiring.
