PANDUIT Harness Board Accessories Spring Holder (10 pieces) SHH1-S8-X 1 bag

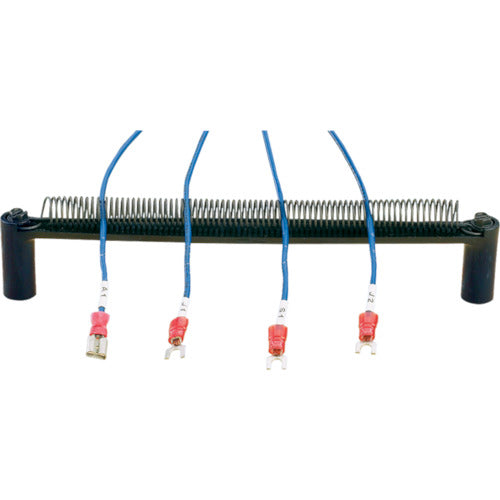

Catalog number: SHH1-S8-X Features: ● Holds wire harness terminals with spring tension. ● Consists of a spring and a spring holder that keeps the spring straight. ● When removing from the harness board, the wires can be easily removed from the spring. ● The spring holder has a mandrel and a fixing hexagonal screw. ● PBSC6-X can be fixed without a spring holder. Applications: ● Holds wire harness terminals. Specifications: ● Color: Black ● Length (mm): 47.0 ● Width (mm): 12.7 ● Height (mm): 33.0 ● Screw dimensions used: M4 ● A (mm): 47.0 ● Dimensions (mm) B: 33.0 ● C (mm): 12.7 ● Compatible screws: QB-S8-500-C ● Compatible fixing platforms: QB-BASE120-Q, QB-BASE175-Q ● Compatible springs: PBSC1-X ● B (mm): 33.0 Material/Finish: ● Nylon 66
