PANDUIT Harness Board Accessories Spring Holder (10 pieces) SHH3-S8-X 1 bag

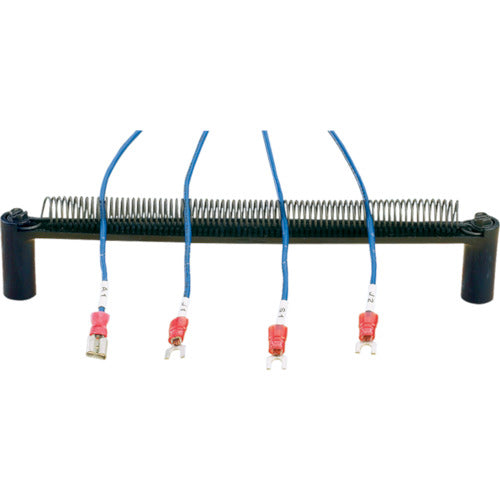

Catalogue number: SHH3-S8-X Features: ● Holds wire harness terminals with spring tension. ● Consists of a spring and a spring holder that keeps the spring straight. ● When removing from the harness board, the wires can be easily removed from the spring. ● The spring holder has a mandrel and a fixing hexagonal screw. ● PBSC6-X can be fixed without a spring holder. Applications: ● Holding wire harness terminals. Specifications: ●Color: Black ●Length (mm): 174.0 ●Width (mm): 13.5 ●Height (mm): 33.0 ●Screw dimensions used: M4 ●A (mm): 174.0 ●Dimension (mm) B: 33.0 ●C (mm): 13.5 ●Compatible screws: QB-S8-500-C ●Compatible fixed platforms: QB-BASE120-Q, QB-BASE175-Q ●Compatible springs: PBSC3-X, PBSC6-X ●B (mm): 33.0 Material/Finish: ●Nylon 66
