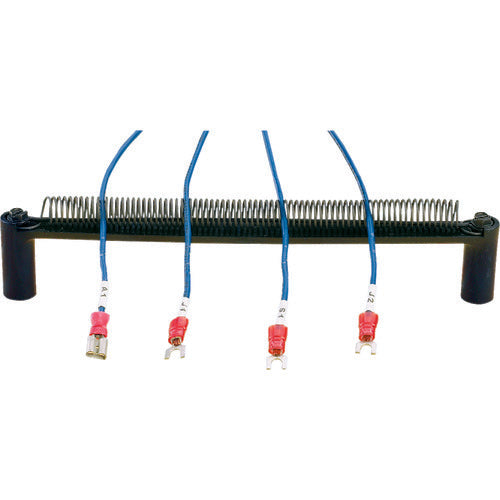

PANDUIT Harness Board Accessories Spring Wire (10 pieces) PBSC1-X 1 bag

Catalogue number: PBSC1-X Features: ● Holds wire harness terminals with spring tension. ● Consists of a spring and a spring holder that keeps the spring straight. ● When removing from the harness board, the wires can be easily removed from the spring. ● The spring holder has a mandrel and a fixing hexagonal screw. ● PBSC6-X and PBSC12-X can be fixed without a spring holder. Applications: ● Holding wire harness terminals. Specifications: ●Color: Black ●Length (mm): 25.4 ●Width (mm): 11.2 ●Height (mm): 11.2 ●Cable tie width (mm): None ●Screw hole diameter (mm): None ●Screw dimensions used: None ●Width (mm): 11.2 ●Depth (mm): 25.4 ●Maximum cable tie diameter (mm): None ●A (mm): 25.4 ●Length (mm): 25.4 ●Compatible spring holder: SHH1-S8-X ●Spring diameter (mm): 11.2 ●B (mm): 11.2 Material/Finish: ●Steel
