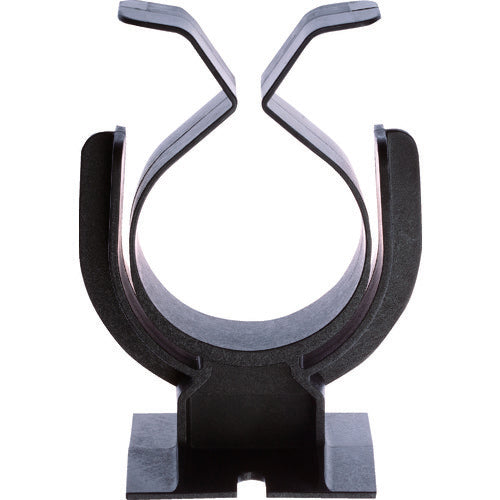

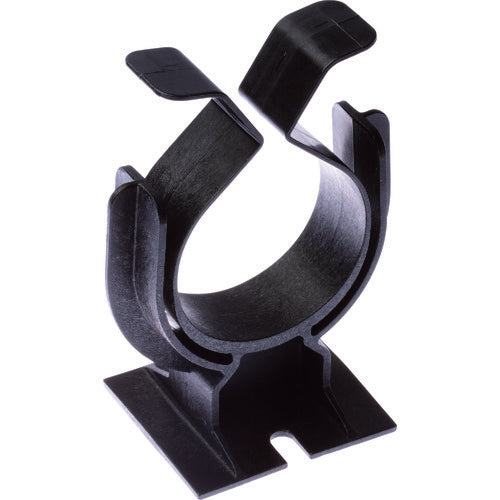

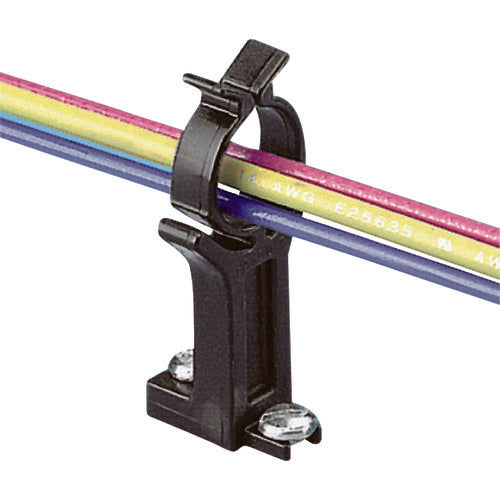

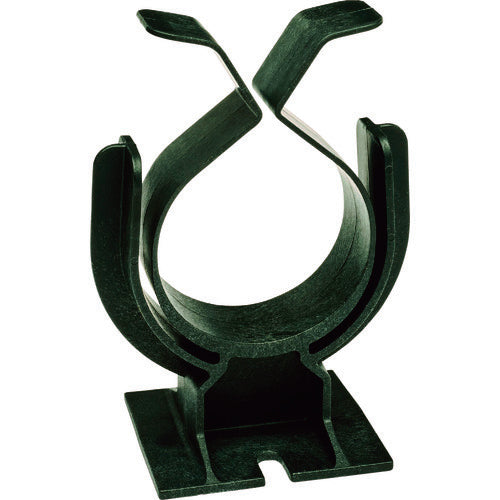

Catalog number: BR2-1.3-X Features: ●The wide and elastic socket makes wiring easy and easy to remove after harnessing. ●The ends are bent and butted together to prevent the cable from coming loose. ●It can be easily removed after the harness is completed. Uses: ●Holding cables during harness assembly. Specifications: ●Color: Black ●Length (mm): 57.2 ●Width (mm): 63.5 ●Height (mm): 33.5 ●Screw dimensions used: M6 ●Maximum binding diameter (mm): 50.8 ●Fixing method: M6 screw ●A (mm): 33.5 ●Dimensions (mm) B: 57.2 ●C (mm): 63.5 ●D (mm): 53.8 ●Compatible screws: QB-S25-500-C ●Compatible fixed platform: QB-BASE175-Q ●B (mm): 57.2 ●For indoor use ●Usage temperature range: -60 to 85°C Material/Finish: ●Nylon 66
