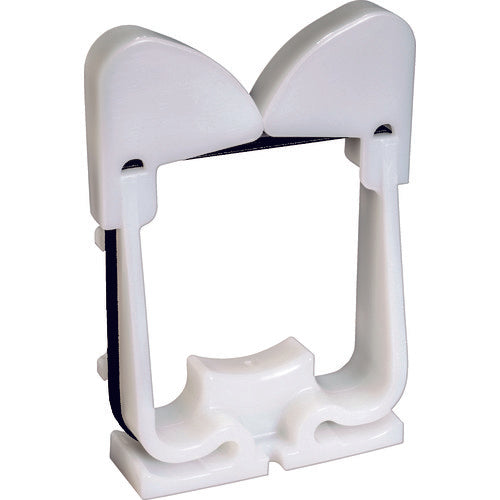

PANDUIT Harness Board Accessories Elastic Retainer White 10 Pieces RER2.0-S6-X 1 Bag

Catalogue number: RER2.0-S6-X Features: ● When inserting the wires individually, the bundle is always kept round. ● It can also be easily removed after the harness is completed. ● The rubber band can be replaced. Applications: ● Holding cables during harness assembly. Specifications: ● Color: White ● Length (mm): 71.4 ● Width (mm): 33.3 ● Height (mm): 100.1 ● Screw size used: M3 ● Maximum bundle diameter (mm): 50.8 ● Fixing method: M3 screw ● A (mm): 100.1 ● Dimension (mm) B: 71.4 ● C (mm): 33.3 ● Suitable screw: QB-S6-500-C ● Suitable fixing platform: QB-BASE175-Q ● Replacement rubber band: RER2.0E-X ● B (mm): 71.4 ● For indoor use ● Operating temperature range: -40 to 85°C Material/Finish: ● Nylon 66
