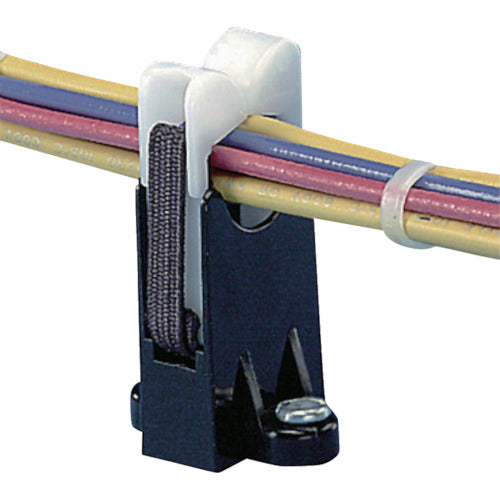

PANDUIT Harness Board Accessories Elastic Retainer (10 pieces) RER1.25-S6-X 1 bag

Catalogue number: RER1.25-S6-X Features: ● When inserting the wires individually, the bundle is always kept round. ● It can also be easily removed after the harness is completed. ● The rubber band can be replaced. Applications: ● Holding cables during harness assembly. Specifications: ● Color: Black ● Length (mm): 41.7 ● Width (mm): 30.0 ● Height (mm): 72.6 ● Screw size used: M3 ● Maximum bundle diameter (mm): 31.8 ● Fixing method: M3 screw ● A (mm): 72.6 ● Dimension (mm) B: 41.7 ● C (mm): 30.0 ● Suitable screw: QB-S6-500-C ● Suitable fixing platform: QB-BASE175-Q ● Replacement rubber band: RER1.25E-X ● B (mm): 41.7 ● For indoor use ● Operating temperature range: -40 to 85°C Material/Finish: ● Nylon 66
