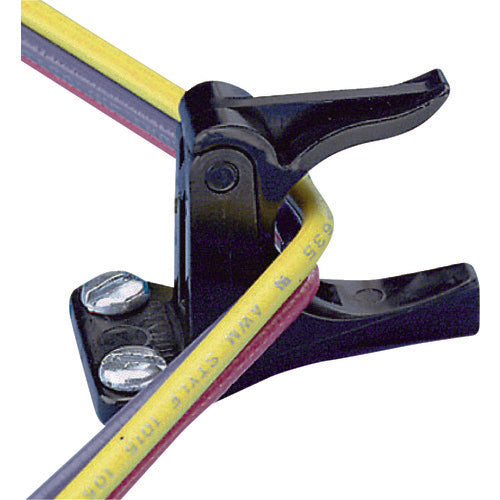

PANDUIT Harness Board Accessories Corner Post (10 pieces) CPL.75-S8-X 1 bag

Catalog number: CPL.75-S8-X Features: ●Holds bundled cables at corners and branching points. ●The upper claws flip up, allowing the harness to be easily removed. Applications: ●Holds cables at corners and branching points during harness assembly. Specifications: ●Color: Black ●Length (mm): 22.4 ●Width (mm): 38.6 ●Height (mm): 27.4 ●Screw hole diameter (mm): 4.4 ●Screw dimensions used: M4 ●Width (mm): 22.4 ●Depth (mm): 38.6 ●Maximum bundle diameter (mm): 19.1 ●Fixing method: M4 screw ●A (mm): 27.4 ●Dimensions (mm) B: 38.6 ●C (mm): 14.2 ●D (mm): 22.4 ●E (mm): 28.2 ●B (mm): 38.6 ●For indoor use ●Usage temperature range: -40 to 85°C Material/Finish: ●Nylon 66
