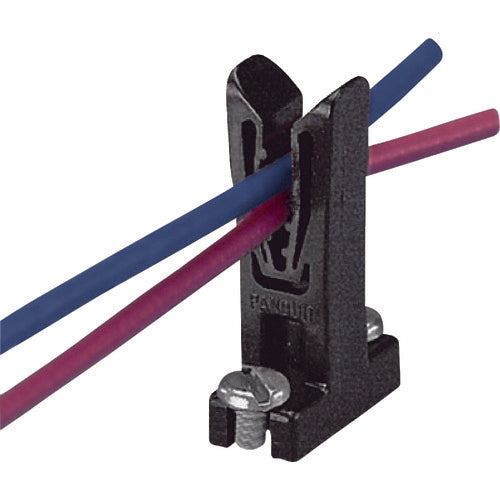

PANDUIT Harness Board Accessories Wire End Holder (100 pieces) WEH-E8-C 1 bag

Catalog number: WEH-E8-C Features: ●Wires can be easily added or removed from the top, but lateral movement is firmly held in place. ●Wire ends can be secured in place during harness assembly. ●Can be used for wires of 0.08 to 1.25 mm2 (AWG28 to AWG16). Applications: ●Securing cable ends during harness assembly. Specifications: Color: Black Length (mm): 9.4 Width (mm): 19.6 Height (mm): 31.0 Screw dimensions: M4 Fixing method: M4 screw A (mm): 31.0 Dimensions (mm) B: 9.4 C (mm): 19.6 D (mm): 13.5 E (mm): 7.4 F (mm): 4.6 Cable size (mm2): 0.08-1.25 Suitable screws: QB-S8-500-C Suitable fixing platforms: QB-BASE120-Q, QB-BASE175-Q B (mm): 9.4 For indoor use Operating temperature range: -40 to 85°C Material/Finish: Nylon 66
